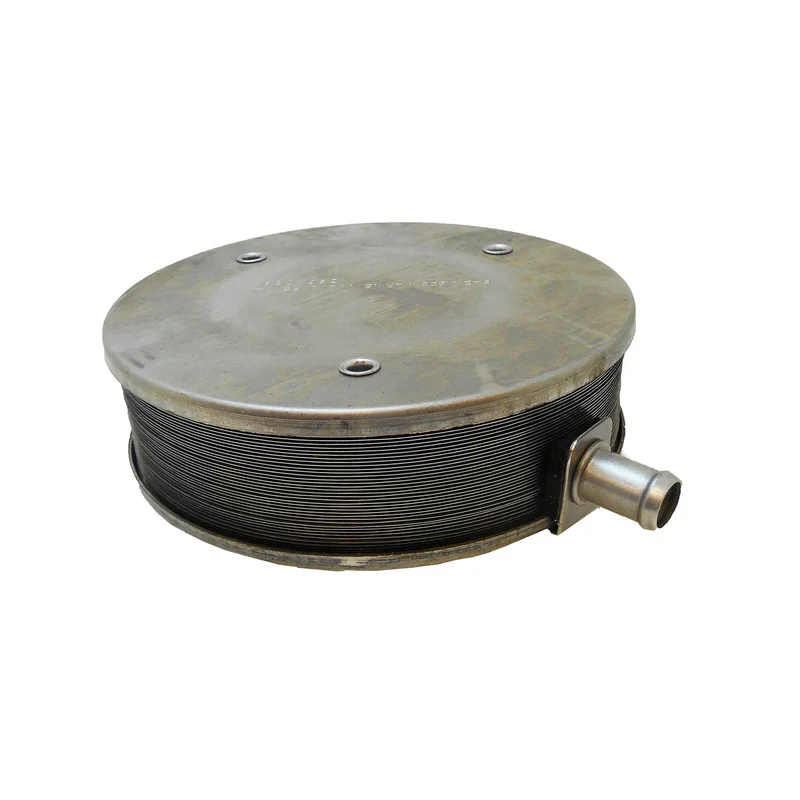

Volvo Penta 3861759 Flame Trap

Since 1935, Volvo Penta has supplied internal combustion engines (ICEs) and entire power systems to the marine sector, power generation equipment, and other industrial uses. In addition to sterndrive and inboard drive systems, the company makes the Volvo Penta IPS.

FLAME TRAP – 3861759 is a device that stops a gas flame from backing up into the supply pipe and causing an explosion. It puts out the flames and keeps them from coming into contact with the raw fuel supply. Internal combustion engines, fuel gas lines such as those that power heaters and stoves, exhaust systems, and other forms of equipment that rely on combustion for heat or energy utilize these traps.

Key Features:

• Preventing the ignition of potentially explosive combinations.
• Keeping fire contained in a safe area.
• Stopping the spread of a flame traveling at subsonic speeds.
• Extinguishes the flame, putting an end to fuel combustion.
• Crimped metal, perforated plates, or wire gauges are used in the end line designs to quickly cool the flame.

Specifications:

• Brand: Volvo Penta
• SKU: 3861759
• Weight: 2.19 LBS
• Diagram Reference Number: 22
• Manufacturer Part Number (MPN): 3861759

Volvo Penta Exploded view / schematic Throttle Body
