Garmin Marine Electronics

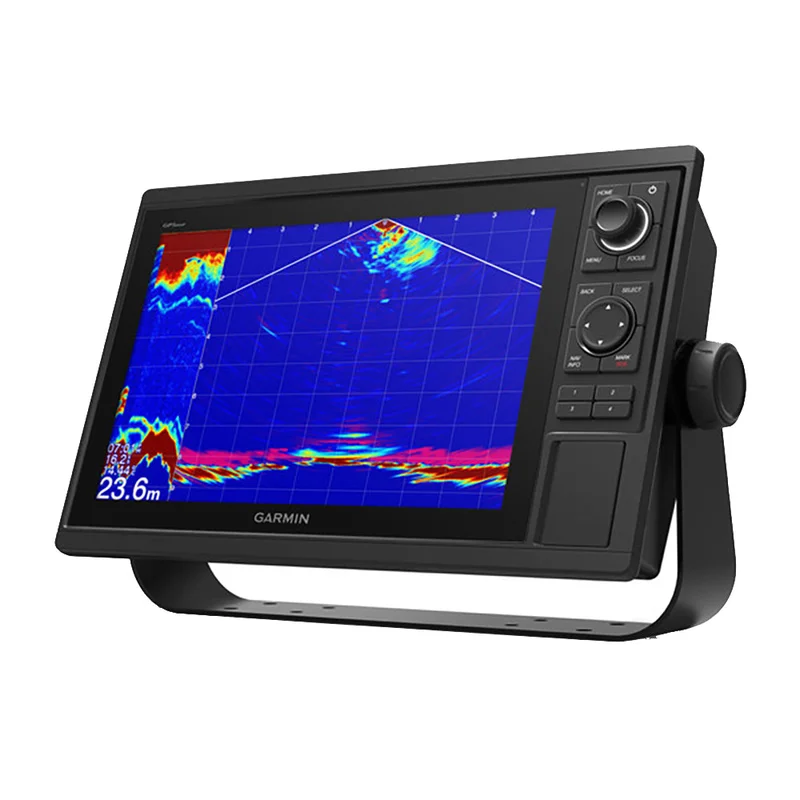

Garmin GPSMAP 1222 Keyed Networking Chartplotter – No Sonar [010-01741-00]
MPN: 010-01741-00 • UPC: 753759168339 • SKU: FT-63442
GPSMAP 1222 is designed for cruisers, sailors and sailing racers who need the advanced all-in-1 solution provided by our 10-inch keyed chartplotter. Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.
Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix™ sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.
⚠️ Confirm transducer compatibility before ordering. Transducers and accessories are sold separately unless this exact product title/package states otherwise.
Quick Details
- Model: GPSMAP 1222
- MPN: 010-01741-00
- Screen Size: 12″
- Touchscreen: No
- Transducer Included: Confirm before ordering
- Product Type: GPS – Chartplotters
- SKU: FT-63442
- UPC: 753759168339
- 12-inch color display with keypad interface and multifunction control knob
- High-sensitivity internal 10 Hz GPS and GLONASS receiver
- Fully network capable for Garmin Marine Network and NMEA 2000® plus NMEA 0183 support
- Supports optional BlueChart® g2 Vision® HD charts for Auto Guidance and other premium navigation features
- Garmin helm upgrades and replacement installs
- Boaters matching this exact part number or product package
- Marine electronics systems using compatible Garmin networking and accessories
- Customers who want a clean, properly matched display, sonar, charting, or accessory setup
In The Box
- GPSMAP 1222 chartplotter
- Power/data cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 m)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
GPSMAP® 1222 Keyed Networking Chartplotter – No Sonar
12-inch Chartplotter Is All-in-1 Solution
- 12-inch color display with keypad interface and multifunction control knob
- High-sensitivity internal 10 Hz GPS and GLONASS receiver
- Fully network capable for Garmin Marine Network and NMEA 2000® plus NMEA 0183 support
- Supports optional BlueChart® g2 Vision® HD charts for Auto Guidance and other premium navigation features
GPSMAP 1222 is designed for cruisers, sailors and sailing racers who need the advanced all-in-1 solution provided by our 10-inch keyed chartplotter. Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.
GPSMAP® 1222 Keyed Networking Chartplotter – No Sonar
12-inch Chartplotter Is All-in-1 Solution
- 12-inch color display with keypad interface and multifunction control knob
- High-sensitivity internal 10 Hz GPS and GLONASS receiver
- Fully network capable for Garmin Marine Network and NMEA 2000® plus NMEA 0183 support
- Supports optional BlueChart® g2 Vision® HD charts for Auto Guidance and other premium navigation features
GPSMAP 1222 is designed for cruisers, sailors and sailing racers who need the advanced all-in-1 solution provided by our 10-inch keyed chartplotter. Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.
Upgrade to Our Best Maps on the Water
Two SD™ card slots provide expandable memory for accessory map purchases, such as LakeVü HD, LakeVü HD Ultra, BlueChart® g2 HD or BlueChart® g2 Vision® HD, which adds Garmin patented Auto Guidance¹ and other great features.
Built-in SailAssist Features
To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.
GPSMAP® 1222 Keyed Networking Chartplotter – No Sonar
12-inch Chartplotter Is All-in-1 Solution
- 12-inch color display with keypad interface and multifunction control knob
- High-sensitivity internal 10 Hz GPS and GLONASS receiver
- Fully network capable for Garmin Marine Network and NMEA 2000® plus NMEA 0183 support
- Supports optional BlueChart® g2 Vision® HD charts for Auto Guidance and other premium navigation features
GPSMAP 1222 is designed for cruisers, sailors and sailing racers who need the advanced all-in-1 solution provided by our 10-inch keyed chartplotter. Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.
Complete Network Sharing
Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix™ sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.
Built-in ANT® Connectivity
Enjoy built-in ANT wireless connectivity directly to quatix® marine watch, Garmin Nautix™ in-view display, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls.
- Match the exact model number and MPN before ordering.
- Confirm transducer plug, network type, dash cutout, and mounting style when replacing an older unit.
- Some charting, satellite, app, mapping, or connected features may require compatible equipment or subscriptions.
- Auto Guidance and charting features are for planning only and do not replace safe navigation practices.
Connections
- Garmin Marine Network™ Ports: 2
- NMEA 2000® Port: 1
- NMEA 0183 Input Ports: 1
- NMEA 0183 Output Ports: 1
- Video Input Ports: 1 BNC
- Video Output Ports: No
- Wireless Connectivity: Yes
¹Auto Guidance is for planning purposes only and does not replace safe navigation operations.
iPhone and iPad are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Wi-Fi is a registered trademark of the Wi-Fi Alliance.
Specifications
- Cartography Brand: Garmin
- Screen Size: 12″
- Internal/External Antenna: Internal
- Touchscreen: No
- Box Dimensions: 10″H x 12″W x 17″L WT: 11 lbs
- UPC: 753759168339
WARNING: This product can expose you to chemicals known to the State of California to cause cancer. For more information, visit P65Warnings.ca.gov.
Ordering tip: Confirm the exact Garmin model, part number, transducer needs, networking requirements, and mounting style before ordering.
