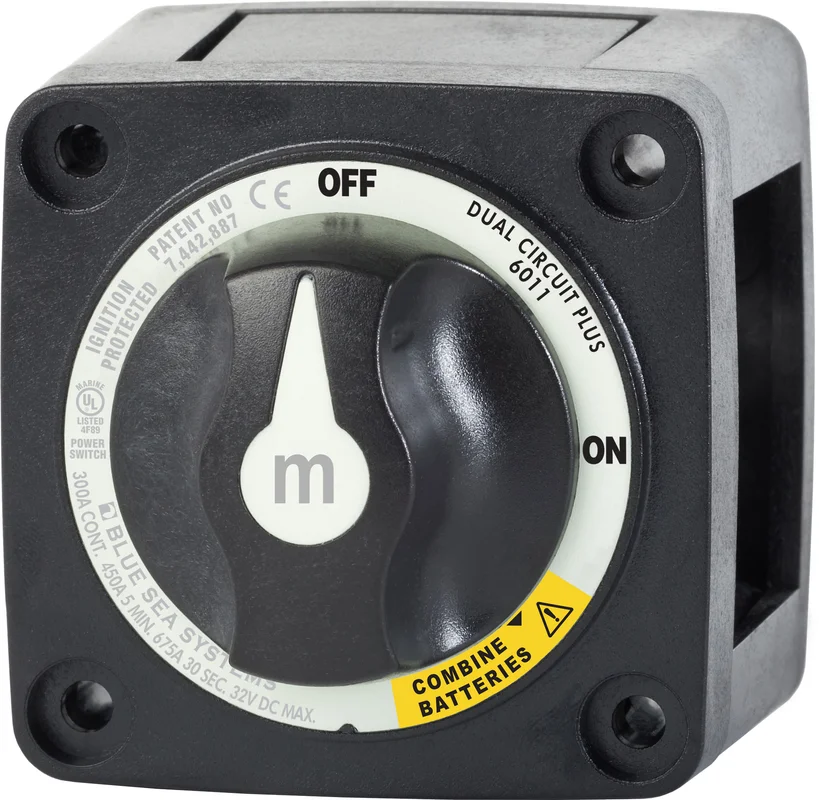

Blue Sea M-SERIES Battery Switch On/Off Dual Circuit Plus Black

Blue Sea Systems m-Series Mini Dual Circuit Plus Battery Switch – Black

Model: 6011200-BSS

• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Studs accept 3/8″ (M10) ring terminals
• 7/8″ (22mm) stud length accepts multiple cable terminals
• Blue Sea Systems one-piece terminal stud design never loosens over time
• Isolating cover with snap-on sections protects rear contacts
• Case design allows surface or rear panel mounting
• Waterproof — rated IP66 from water projected in powerful jets
• One-piece stainless flange nuts ensure safe and secure connections
• Breakout tabs allow wire access in any direction
• Make before break contact design allows switching between battery banks without power interruption

Simultaneously switches two isolated battery banks or combines battery banks to all loads

Specifications
