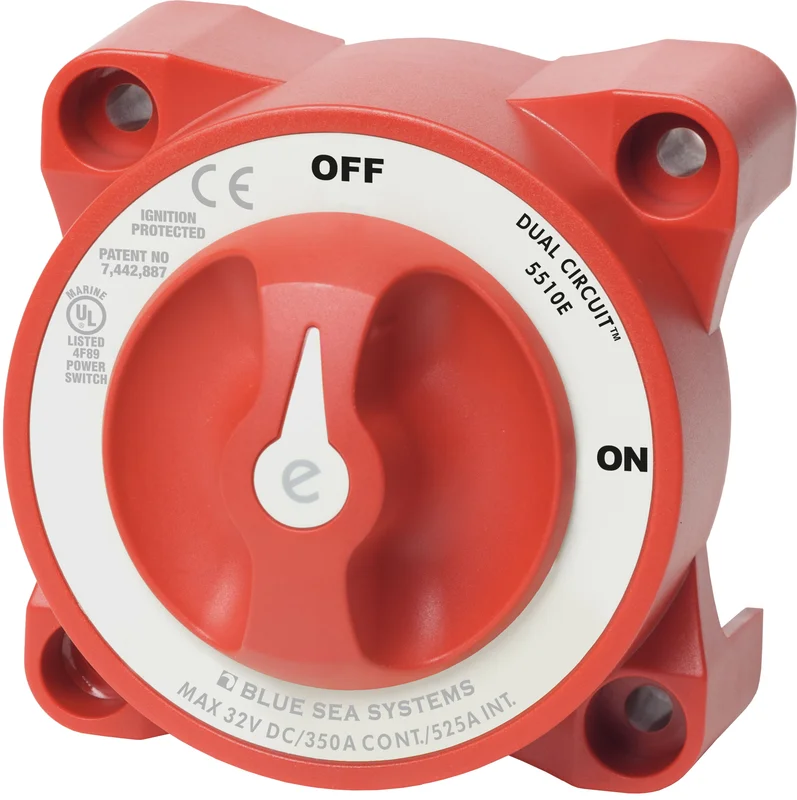

Blue Sea E-Series Battery Switch ON-OFF Dual Circuit

Blue Sea Systems e-Series Dual Circuit Battery Switch

Model: 5510E-BSS

• 350 Amps continuous rating for inboard gasoline or diesel engines.
• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Accepts up to 4/0 AWG battery cables
• Studs accepts 3/8″ (M10) ring terminals
• 7/8″ (22mm) stud length accepts multiple cable terminals
• Blue Sea Systems one-piece terminal stud design never loosens over time
• Fits most Perko and Guest low amperage battery switch hole patterns
• Case design allows surface, rear, or front panel mounting options
• Tactile indicator conveys knob position by feel
• Waterproof — rated IP66 from water projected in powerful jets
• Ignition protected—safe for installation aboard gasoline powered boats

Specifications
