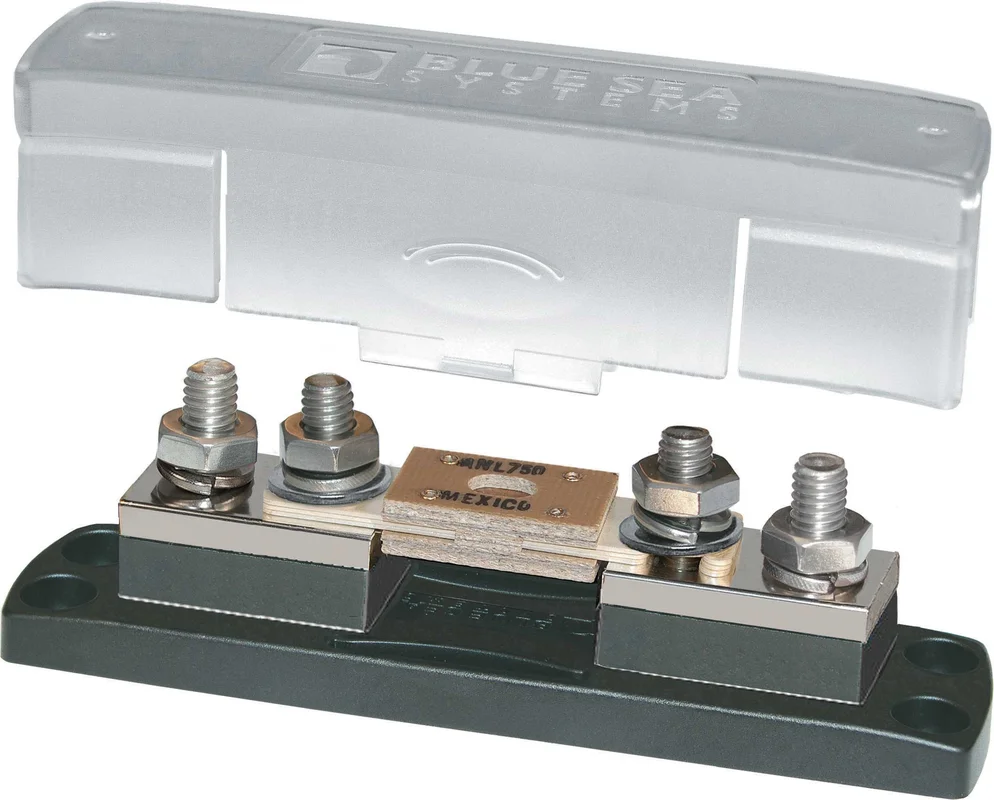

Blue Sea 5503 ANL Fuse Block 35A-750A

750 Amp Fuse Block with Cover

• Stainless steel studs provide resistance to corrosion and high torque for excellent electrical contact
• Insert molded studs ensure secure fuse mounting
• For use on systems up to 32 Volts DC
• Large studs accept cables up to 4/0 AWG
• Insulating cover satisfies ABYC/USCG requirements and cover breakouts allow access in any direction
• For use on systems up to 32 Volts DC
• Large 5/16″-18 studs accept 5/16″ (M8) ring terminals, 14 AWG to 2/0 AWG wire

Maximum Torque: 107 in-lb (12.09 N·m) max.

Maximum Cable Size: 4/0 AWG

Amperage: 35-750Amps
